Allen & Heath M-DL-AES10O-A AES3 dLive I/O Card

Allen & Heath M-DL-AES10O-A AES3 dLive I/O Card

dLive Audio Interface CardsAES3 I/O cards provide a convenient solution for digital patching from a dLive system to system PA, monitor amps and speaker controllers, or for console combining. Four different cards are offered to fit a wide variety of I/O requirements: 2 in / 8 out, 4 in / 6 out, 6 in / 4 out, and 10 out. The cards€™ output sample rate is switchable between 96kHz, 88.2kHz, 48kHz and 44.1kHz, while the inputs provide sample rate conversion from 32kHz to 192kHz.

All AES3 cards can be fitted to any I/O Port in an Allen & Heath dLive S Class or dLive C Class MixRack or Surface.

Features:

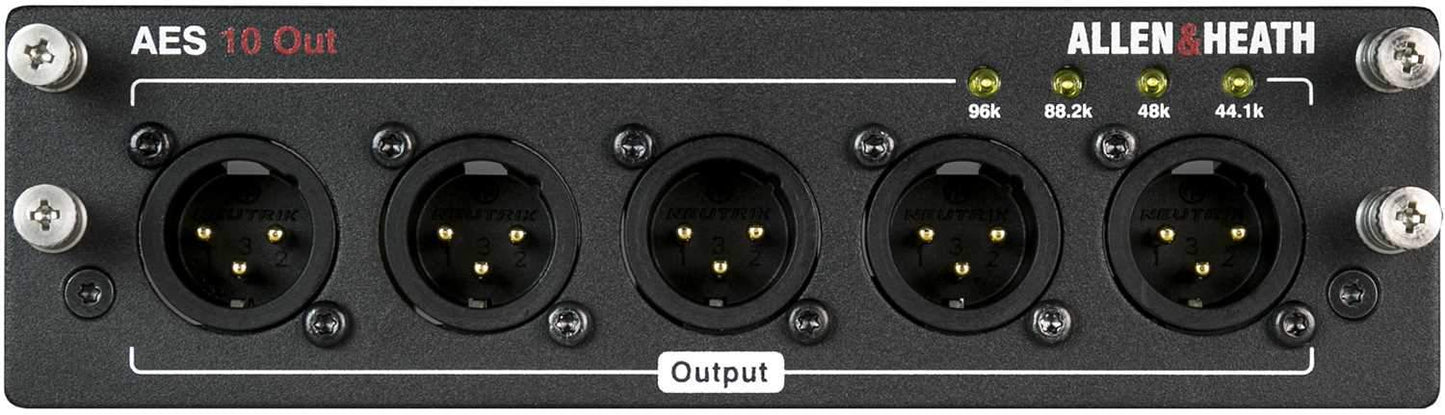

• AES3 card: 10out (M-DL-AES10O-A)
• Switchable sample rate (96kHz, 88.2kHz, 48kHz and 44.1kHz)
• Input SRC 32kHz to 192kHz
• Option to sync from first AES input
