JBL Pro

JBL VTX-M20 Dual 10-Inch Low-Profile Stage Monitor 2-Way 60 X 60 Degree Coverage

JBL VTX-M20 Dual 10-Inch Low-Profile Stage Monitor 2-Way 60 X 60 Degree Coverage

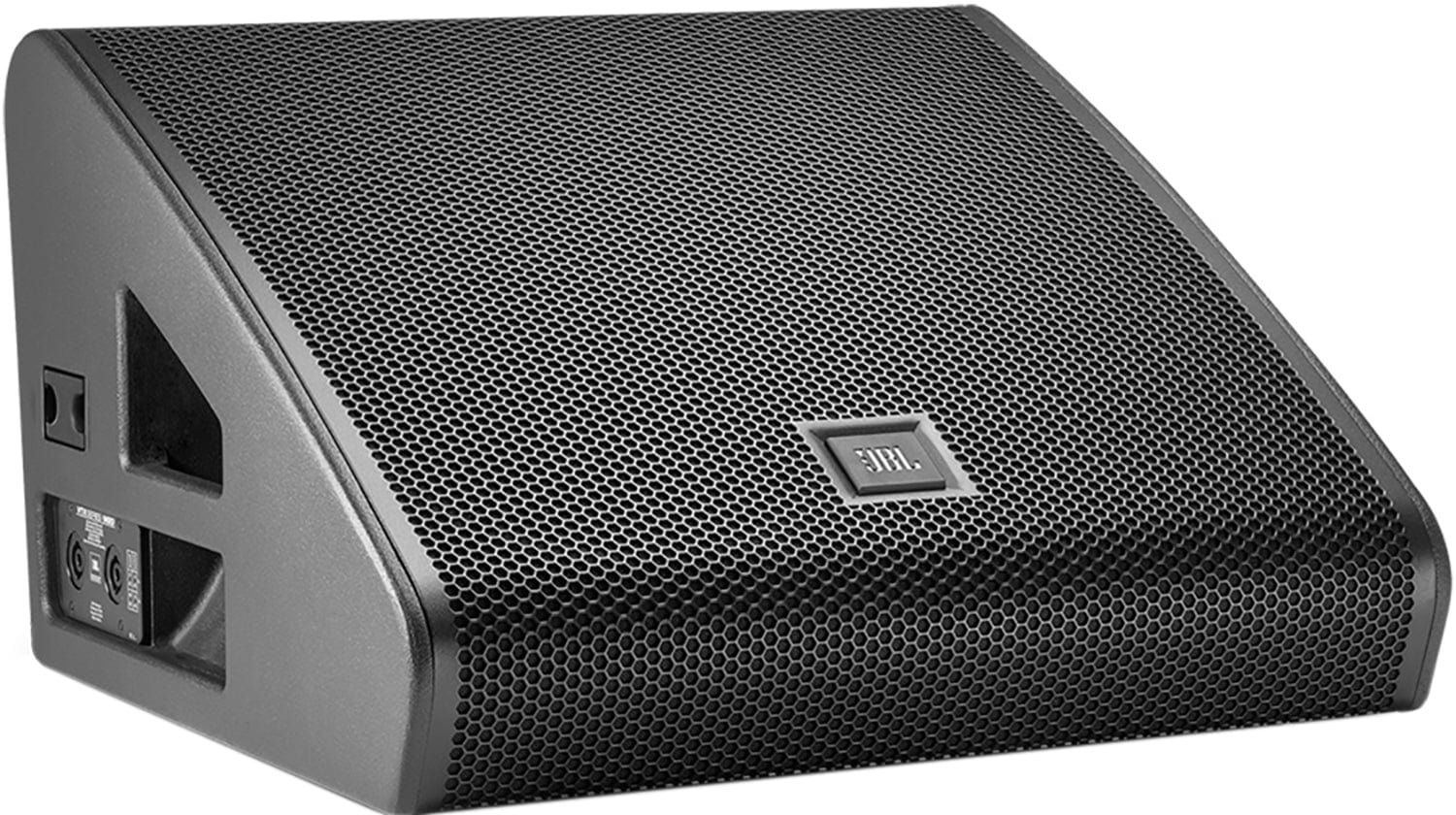

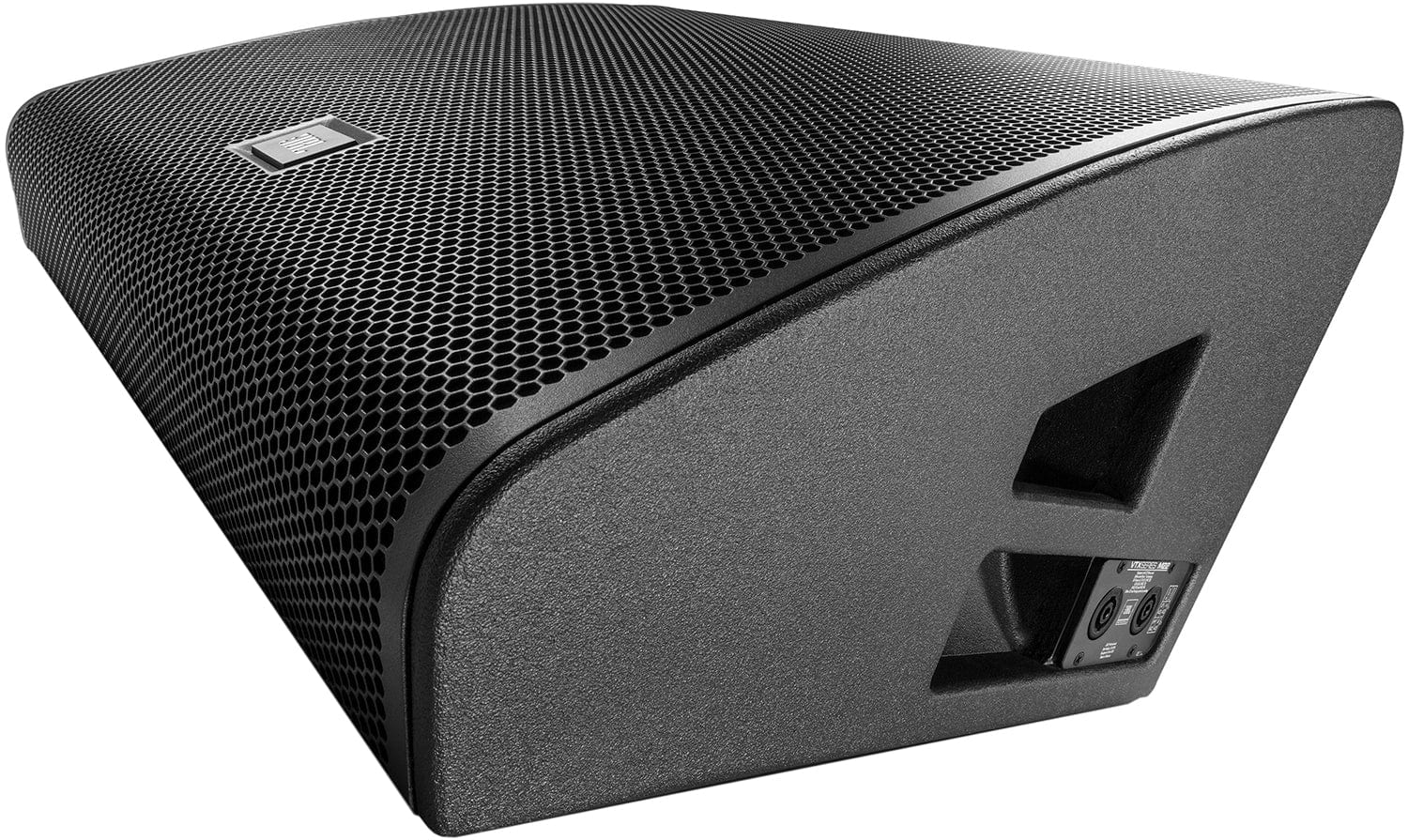

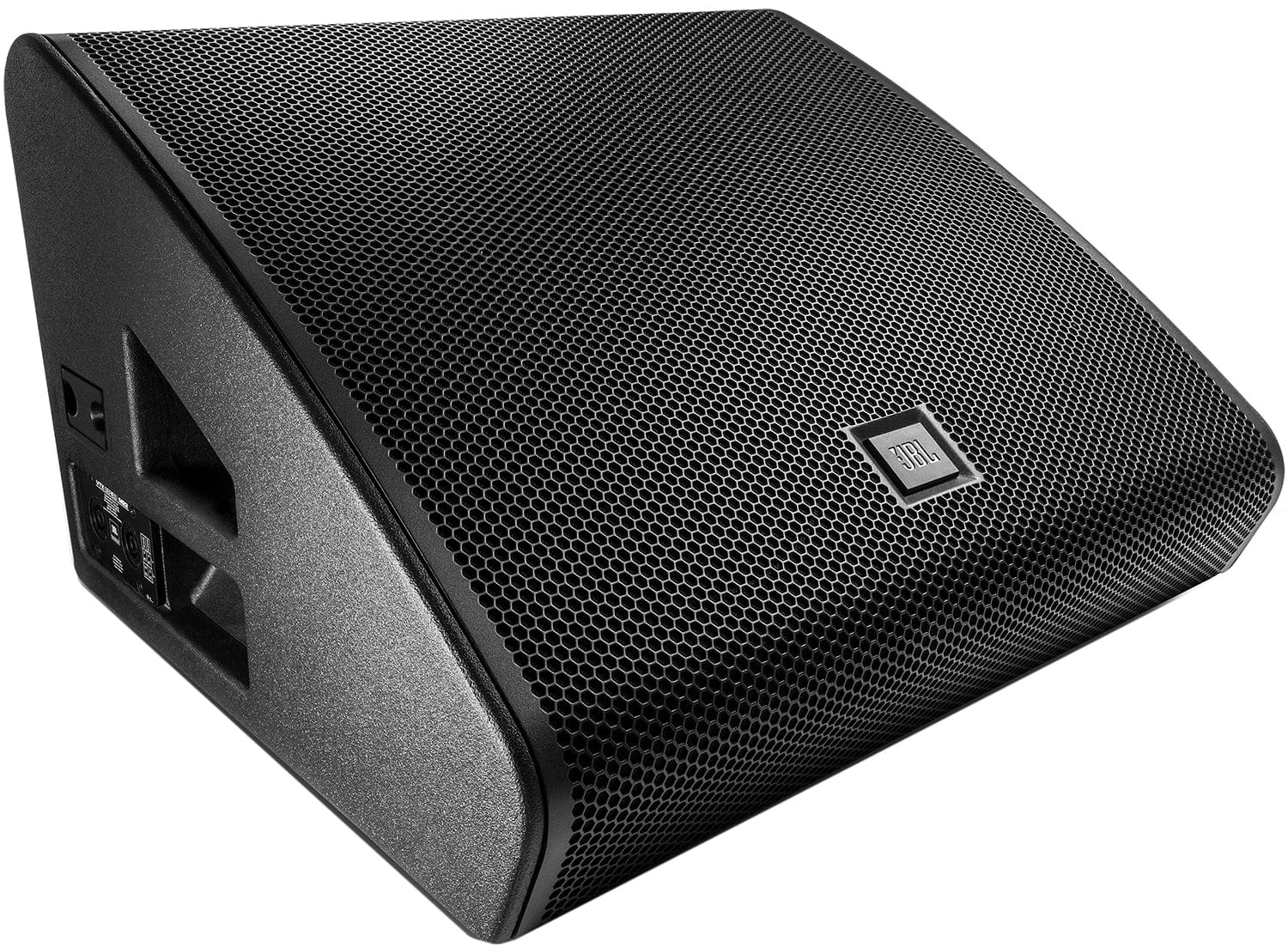

JBL VTX-M20 Dual 10-Inch Low-Profile Stage Monitor with 2-Way 60 X 60 Degree Coverage

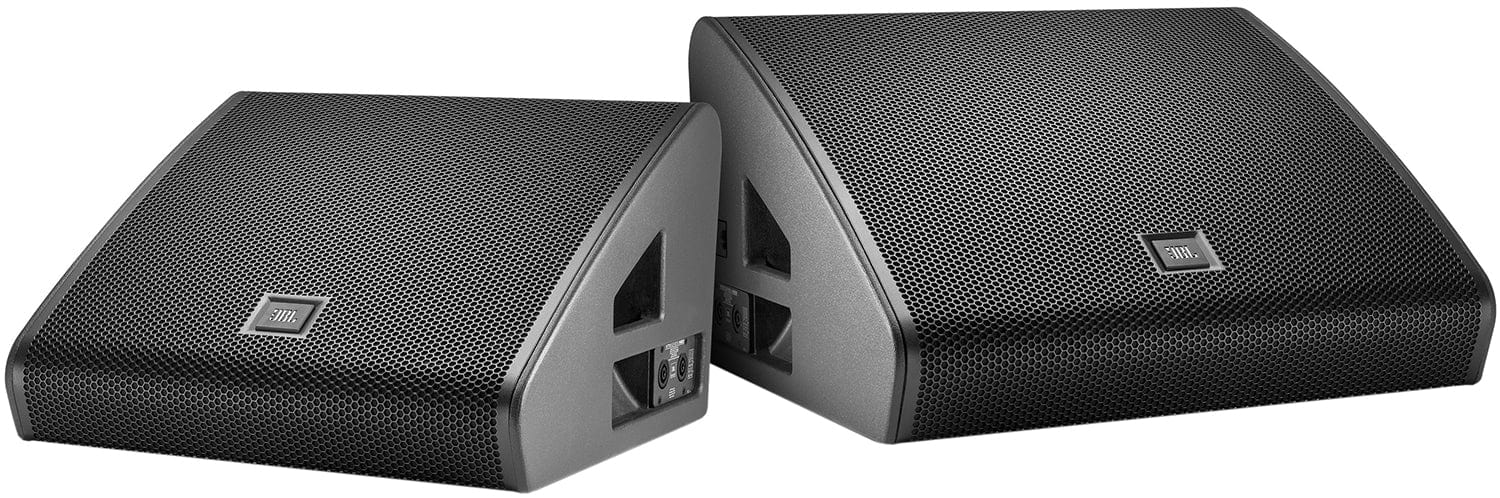

The dual 10€� VTX M20 professional stage monitor, featuring high performance differential drive woofers and the large-format D2 dual-diaphragm dual voice-coil high frequency driver. The option of Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes comes standard, allowing the user to choose the right option for the application, with no compromise in output power or performance. Drawing on JBL€™s unique history of sharing technological innovations across product lines, the VTX M Series HF waveguide features Image Control Waveguide Technology, which gives the VTX M20 a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. All of these premium, tour-ready features are enclosed in a pair of modern, low profile designs that are lightweight, ergonomic, and show-ready for even the most high profile concert or broadcast events. And because VTX M Series is part of the VTX family, it comes fully supported in JBL HiQNet Performance Manager with V5 presets.

Features:

  • Elegant, low profile, compact design suitable for touring and high profile broadcast applications
  • State of the art JBL transducers, including Differential Drive„¢ cone transducers and D2 dual diaphragm dual voice coil compression driver

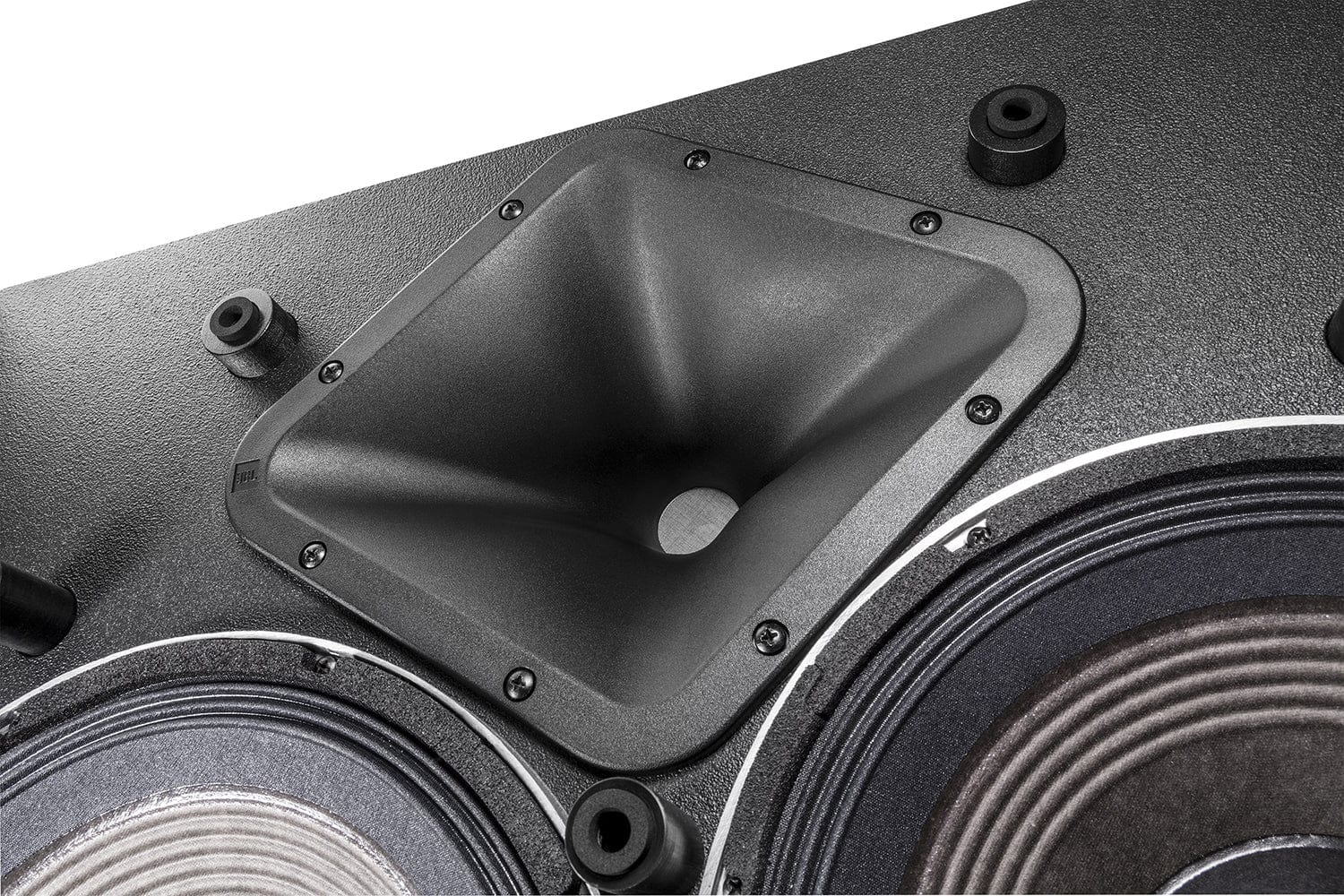

  • 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
  • Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment

Specifications:

  • System:
    • Frequency Range (-10 dB): 55 Hz - 19.5 kHz
    • Coverage Pattern (-6dB):
      • Horizontal: 60
      • Vertical: 60
    • System Input Power Rating:
      • Passive: 1250 W Continuous (IEC / 100 hour)
      • Active:
        • LF: 1250 W Continuous (IEC / 100 hour)
        • HF: 100 W Continuous (IEC / 100 hour)
    • Maximum Peak Output: 136dB (Preset: VTX M20 FR)
    • System Latency: 3.33ms
    • System Processing:
      • Crown Audio I-Tech HD Series
      • Crown Audio I-Tech 4x3500HD
    • System Impedance:
      • Passive: 4 ohms
      • Active:
        • LF: 4 ohms
        • HF: 8 ohms
  • Transducers:

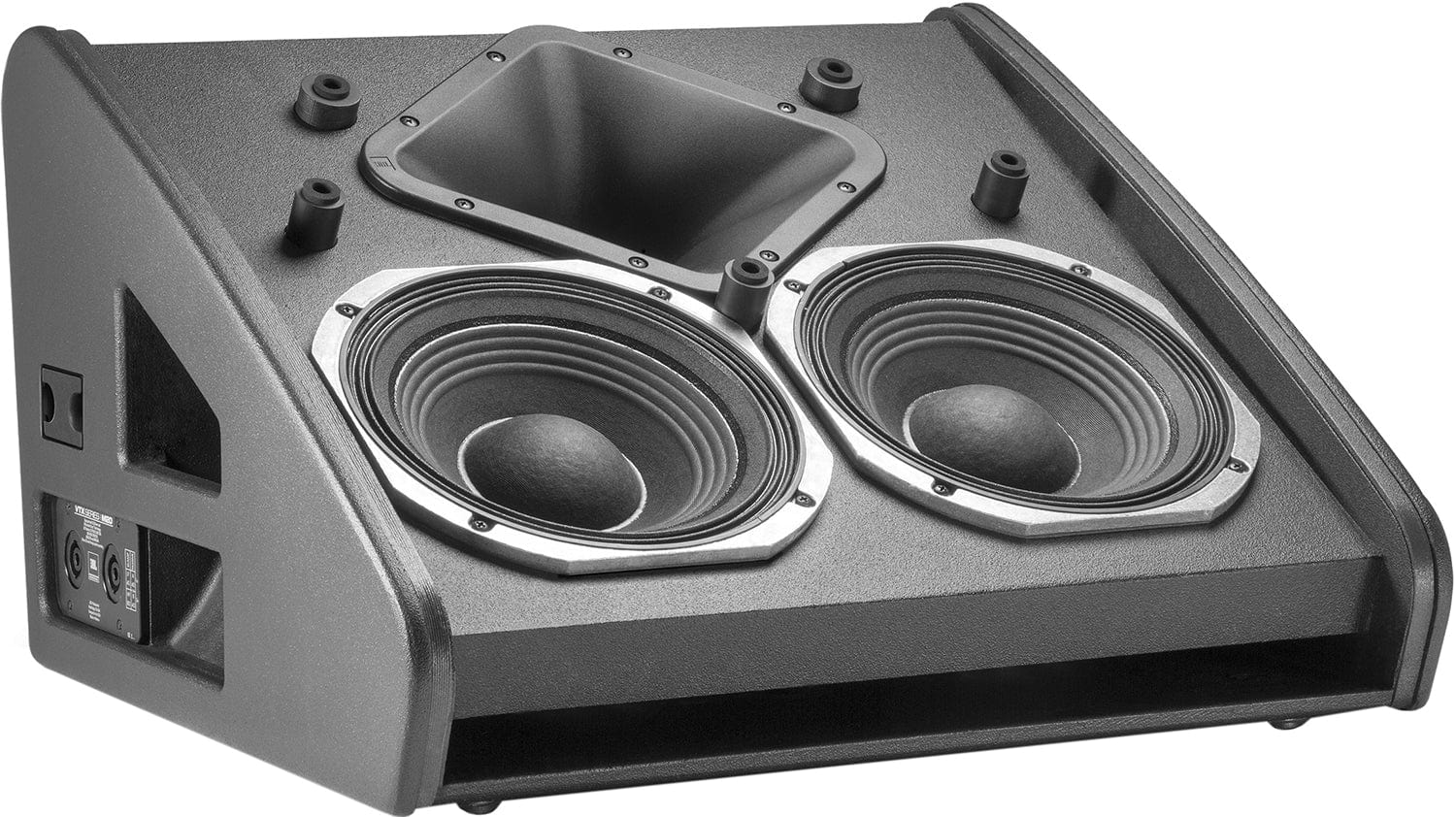

    • Low Frequency: 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD ®, Direct Cooled „¢
    • High Frequency: 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
  • Enclosure:
    • Monitor Angle: 30 degrees
    • Construction: 18 mm, 11-ply Finnish birch plywood

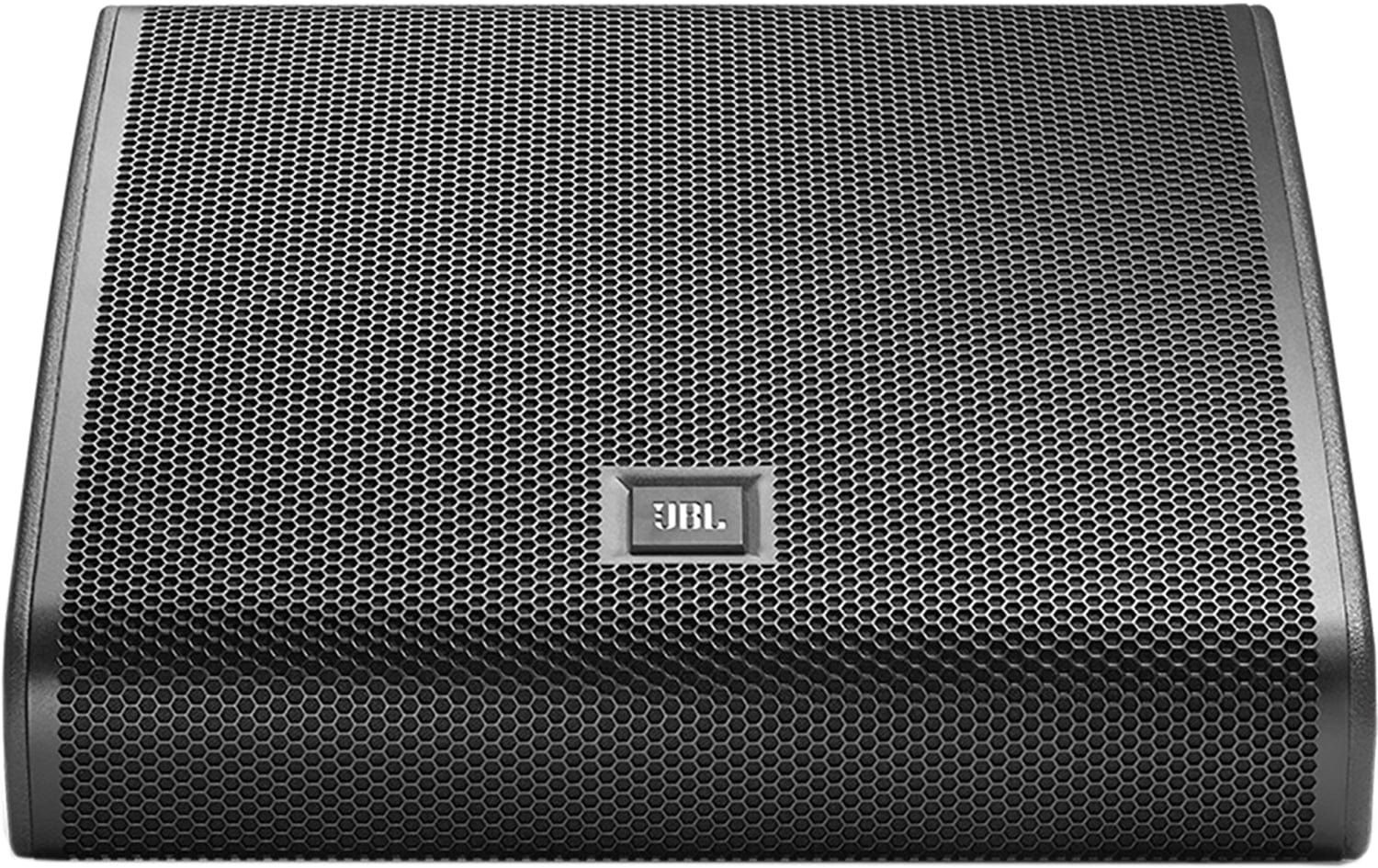

    • Grille: Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing

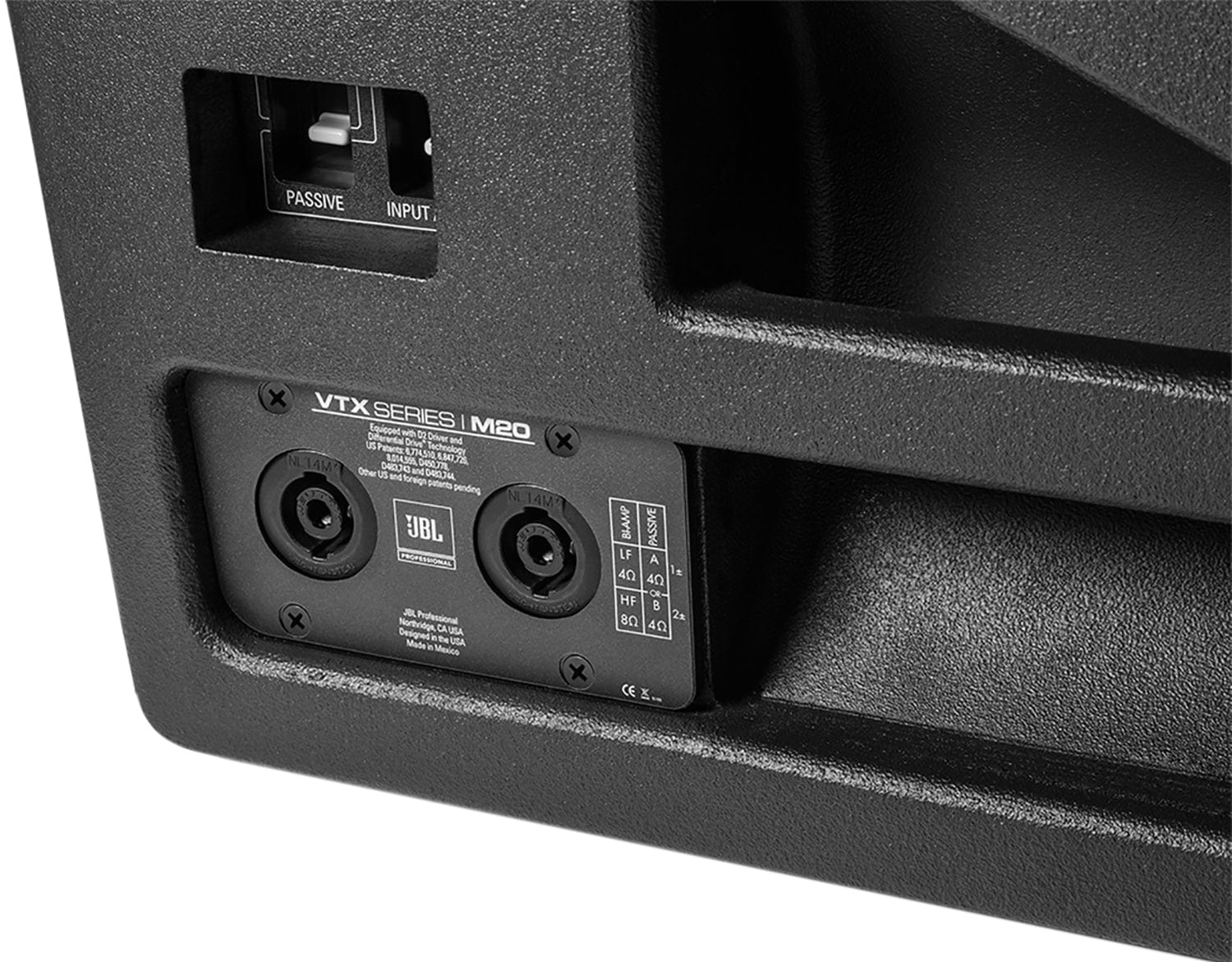

    • Input Connectors:
      • Passive: Neutrik ® Speakon ® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ±
      • Active: Neutrik ® Speakon ® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
    • Dimensions (H x W x D): 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in)
    • Net Weight: 23 kg (51 lbs)
