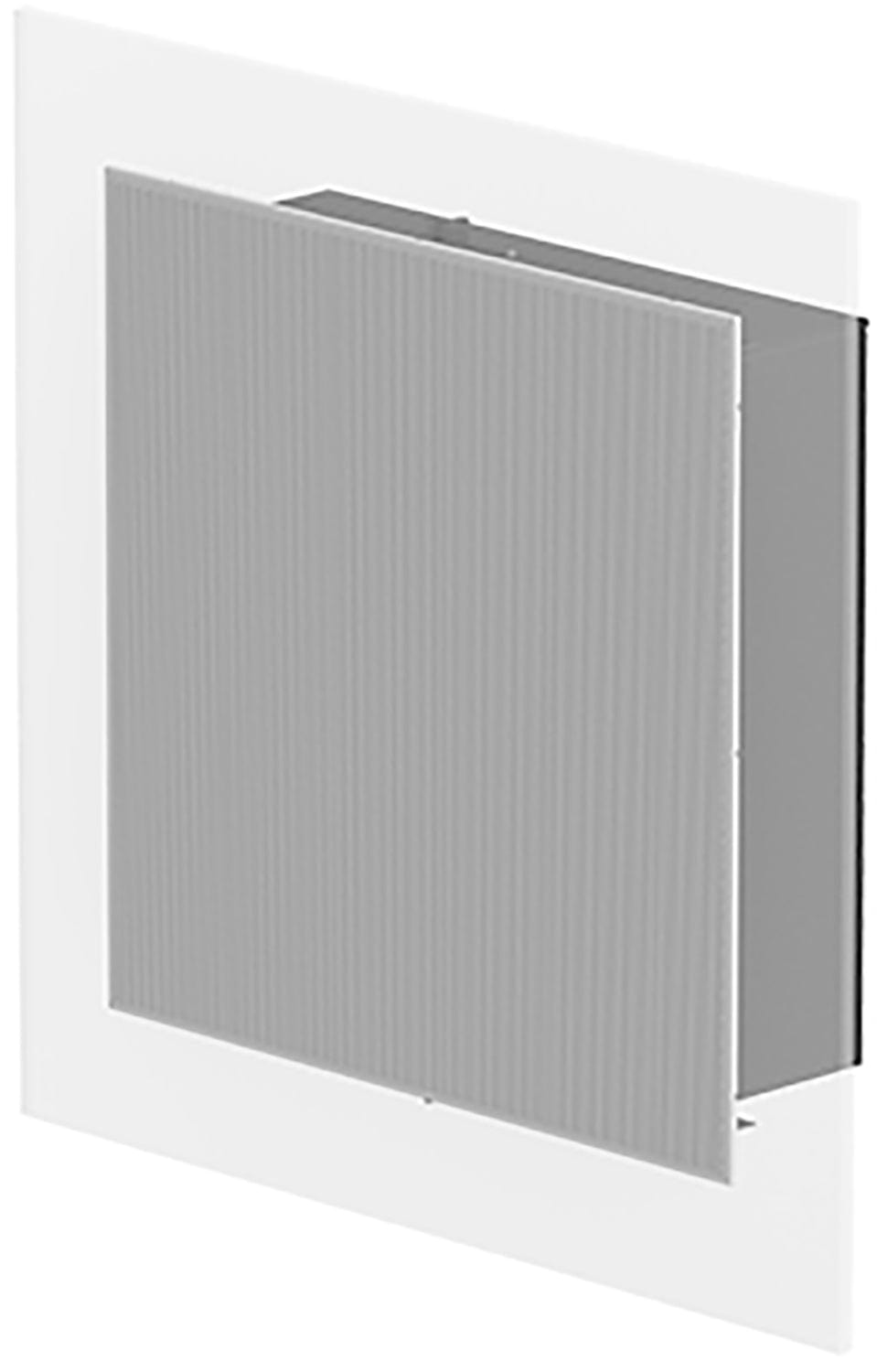

L-Acoustics SB10r-INCEILING 10 Inch Ultra-Compact Subwoofer - Recessed for Ceilings

L-Acoustics SB10r-INCEILING 10 Inch Ultra-Compact Subwoofer - Recessed for Ceilings

L-Acoustics SB10r-INCEILING 10 Inch Ultra-Compact Subwoofer - Recessed for Ceilings

Install-specific ultra-compact passive subwoofer with a direct radiating 10 in transducer mounted in a bass-reflex tuned enclosure with laminar vents for increased LF efficiency. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood. The transducer front is protected by a coated steel grill and an acoustically transparent fabric. Dedicated accessories allow for various mounting options: on-wall, on-ceiling, in-wall and in-ceiling. The inserts and the connectors are all gathered on a single enclosure panel. Rubber feet stabilize ground-stacked deployment of one or more elements to prevent movement or cabinet scratching. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

Features:

  • High-power handling for maximized output and bandwidth for its size
  • Fits the most stringent dimension restrictions
  • Clear low-frequency power with L-VENTS„¢
  • Designed to melt into any venue decor

Specifications:

  • Coverage:
    • Enclosure directivity: standard
  • Transducers:
    • LF transducer: 10" cone driver
  • Acoustics:
    • Nominal impedance: 8 „¦
    • Usable bandwidth:
      • Preset 1: 25 €“ 70 Hz (-10 dB), 27 €“ 64 Hz (-6 dB), 30 €“ 55 Hz (-3 dB)
      • Preset 2: 27 €“ 118 Hz (-10 dB), 30 €“ 96 Hz (-6 dB), 33 €“ 80 Hz (-3 dB)
      • Preset 3: 29 - 180 Hz (-10 dB), 32 - 125 Hz (-6 dB), 35 - 87 Hz (-3 dB)
    • RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 146 W
    • Maximum SPL (Peak level at 1 m under half space conditions using pink noise with crest factor 4):
      • Preset 1: 119 dB
      • Preset 2: 122 dB
      • Preset 3: 124 dB
  • Physical data:
    • Acoustical load: bass-reflex
    • Cabinet: premium grade Baltic beech and birch plywood
    • Finish: Dark grey brown Pantone 426 C
    • Dimensions (W, H, D): 540 mm, 540 mm, 170 mm / 21.3 in, 21.3 in, 16.6 in
    • Weight (net): 14 kg / 31 lb
    • Connectors: 1 × 4-point terminal block with push-in connection
    • IP: IP55
