Meyer Sound JM-1P RMS Arrayable Point-Source Speaker/Weather Protected/3-Pin/Remote Monitoring/Loop

Meyer Sound JM-1P RMS Arrayable Point-Source Speaker/Weather Protected/3-Pin/Remote Monitoring/Loop

Meyer Sound JM-1P RMS Arrayable Point-Source Speaker/Weather Protected/3-Pin/Remote Monitoring/Loop

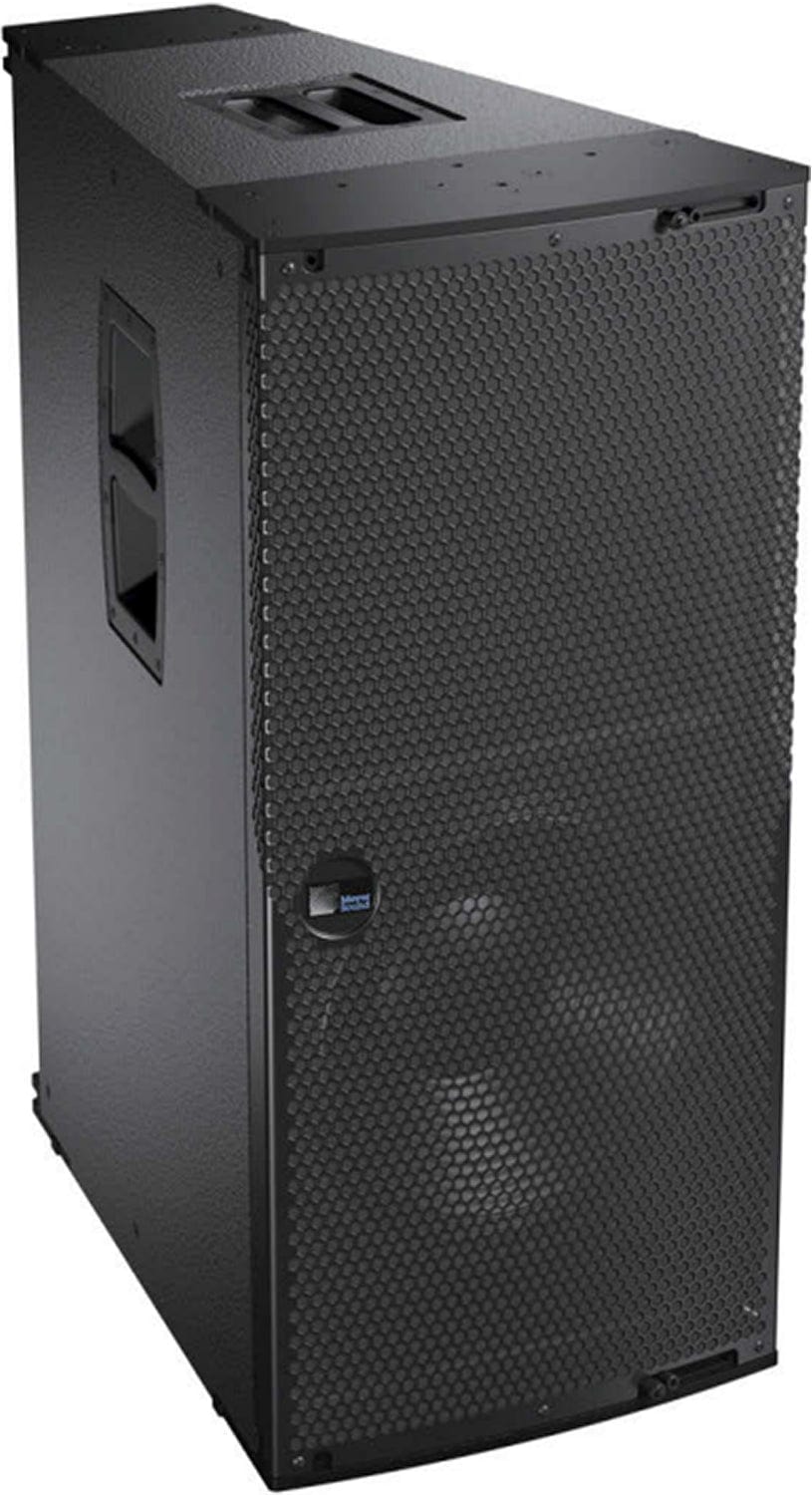

The JM€‘1P self-powered loudspeaker is a high-Q, arrayable loudspeaker suited for a wide range of applications. Utilizing Meyer Sound€™s patented REM® technology and trapezoidal cabinet design, the JM€‘1P can be deployed in tightly-packed array clusters to deliver coverage that is proportional to the number of units in the array. While JM€‘1P point source arrays are optimized for horizontal installations, they can also be used vertically when necessary. With its scalable coverage and versatile QuickFly® rigging options, the JM€‘1P loudspeaker can be used for touring, rental, and fixed installations.

Features:

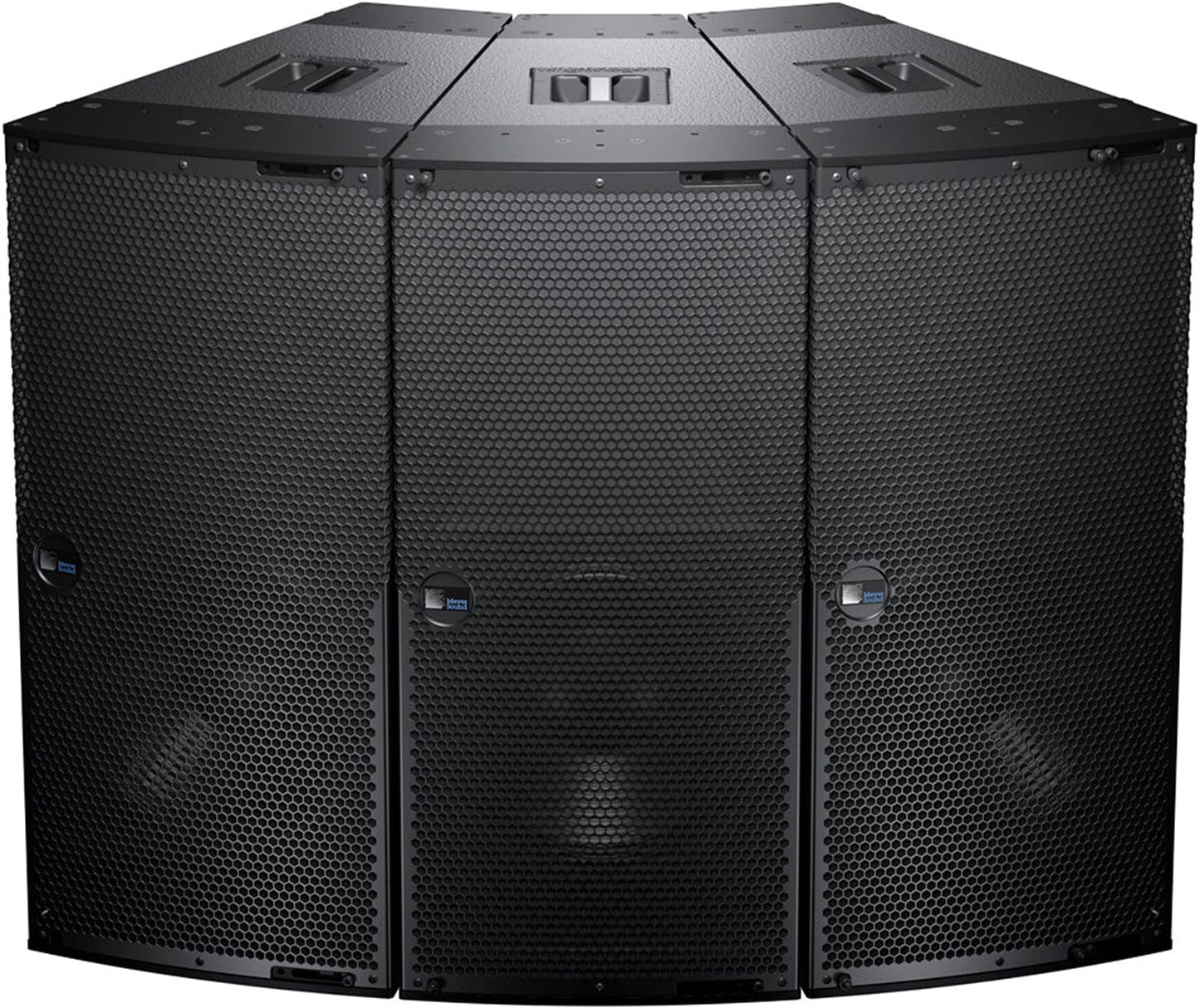

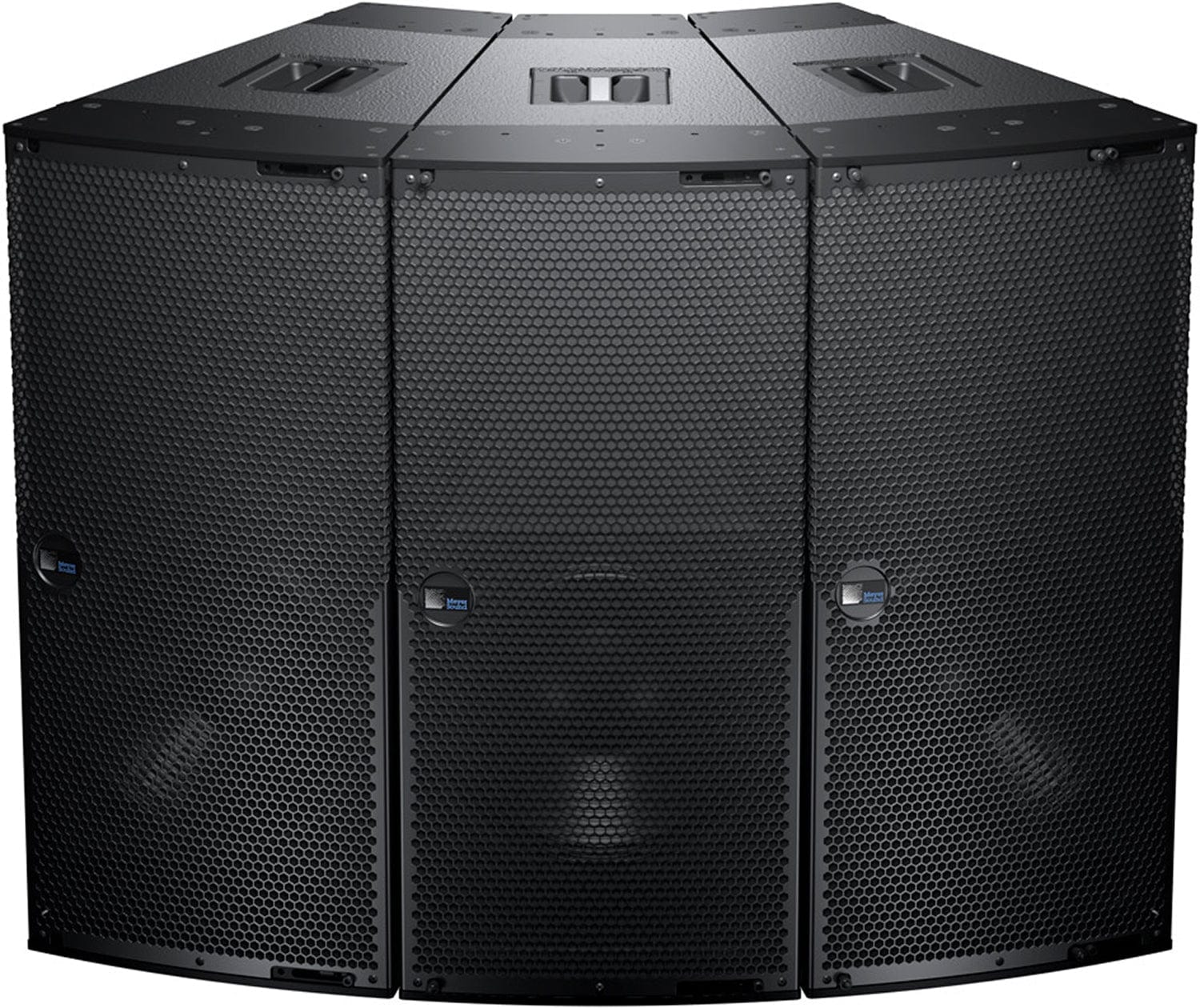

  • Tightly controlled coverage is scalable proportional to the number of arrayed units
  • Exceptional size to power ratio
  • QuickFly rigging offers the flexibility of both horizontal and vertical arrays
  • Consistent and predictable array performance ensures accurate system design

Specifications:

  • Acoustical:
    • Operating Frequency Range: 53 Hz €“ 18 kHz
    • Frequency Response: 56 Hz €“ 16.5 kHz ±4 dB
    • Phase Response: 580 Hz €“ 16 kHz ±45°
    • Linear Peak SPL: 132 dB with crest factor >15.5 dB (M-noise), 133dB (Pink noise), 136 dB (B-noise)
  • Coverage:
    • Horizontal Coverage: 20°
    • Vertical Coverage: 60°
  • Transducers:
    • Low Frequency: One high-power, 15-inch cone driver with neodymium magnet; 2 Ω nominal impedance
    • High Frequency: One 4-inch compression driver; 8 Ω nominal impedance
  • Audio Input:
    • Type: Differential, electronically balanced
    • Maximum Common Mode Range: ±15 V DC, clamped to earth for transient voltage protections
    • Connectors: XLR 3-pin female input with male loop output.
    • Input Impedance: 10 kΩ differential between pins 2 and 3
    • Wiring:
      • Pin 1: Chassis/earth through 220 k„¦, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
      • Pin 2: Signal +
      • Pin 3: Signal -
      • Case: Earth ground and chassis
    • Nominal Input Sensitivity: 0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
    • Input Level: Audio source must be capable of producing of +20 dBV (10 V rms) into 600 „¦ to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
  • Amplifier:
    • Type: Two-channel, complementary MOSFET output stages (class AB/H)D
    • Total Output Power: 2550 W peak
    • THD, IM, TIM: < 0.02%
    • Cooling: QuietCool„¢ with convection cooling at low to mid audio levels; fan-assisted only at high audio levels.
  • AC Power:
    • Connectors: powerCON 20 input with loop output
    • Automatic Voltage Selection: Two ranges, each with high-low voltage tap (uninterrupted)
    • Safety Agency Rated Operating Range: 95€“125 V AC; 208€“235 V AC, 50/60 Hz
    • Turn-on and Turn-off Points: 85€“134 V AC; 165€“264 V AC
  • Current Draw:
    • Idle Current: 0.50 A rms (115 V AC); 0.28 A rms (230 V AC); 0.56 A rms (100 V AC)
    • Maximum Long-Term Continuous Current (>10 sec): 4.55 A rms (115 V AC); 2.50 A rms (230 V AC); 5.25 A rms (100 V AC)
    • Burst Current (<1 sec): 8.0 A rms (115 V AC); 4.1 A rms (230 V AC); 9.2 A rms (100 V AC)
    • Maximum Instantaneous Peak Current: 20.8 A peak (115 V AC); 13.0 A peak (230 V AC); 21.6 A peak (100 V AC)
    • Inrush Current: 7.1 A peak (115 V AC); 8.4 A peak (230 V AC); 7.1 A peak (100 V AC)
  • RMS Network (Optional): Two-conductor twisted-pair network that reports all operating parameters of amplifiers to system operator€™s host computer.
  • Physical:
    • Dimensions: W: 16.79 in (427 mm) x H: 36.08 in (916 mm) x D: 29.30 in (744 mm)
    • Weight: 147 lb (66.68 kg)
    • Enclosure: Premium multi-ply birch with slightly textured black finish with weather protection
    • Protective Grille: Powder-coated, hex-stamped steel with black mesh
    • Rigging: Aluminum end plates with side links for arraying units; threaded metric M10 points for rigging accessories; optional pickup plate and vertical grid for suspending arrays with uptilt or downtilt
