Q-SYS SC-434 Tri or Quad-Amp 4-Way 3x15-inch Cinema Loudspeaker System with LF-4315 and MHV-1090

Q-SYS SC-434 Tri or Quad-Amp 4-Way 3x15-inch Cinema Loudspeaker System with LF-4315 and MHV-1090

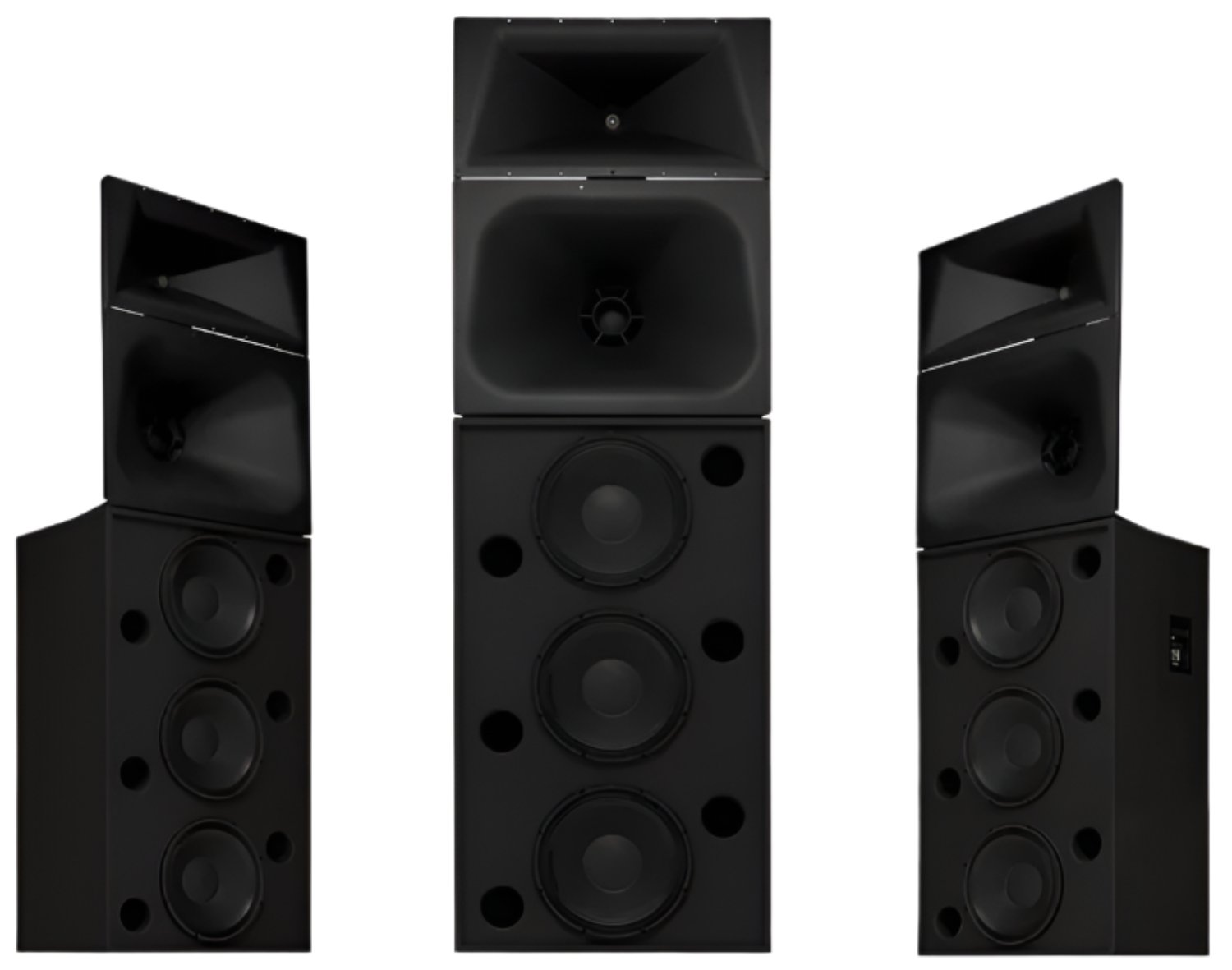

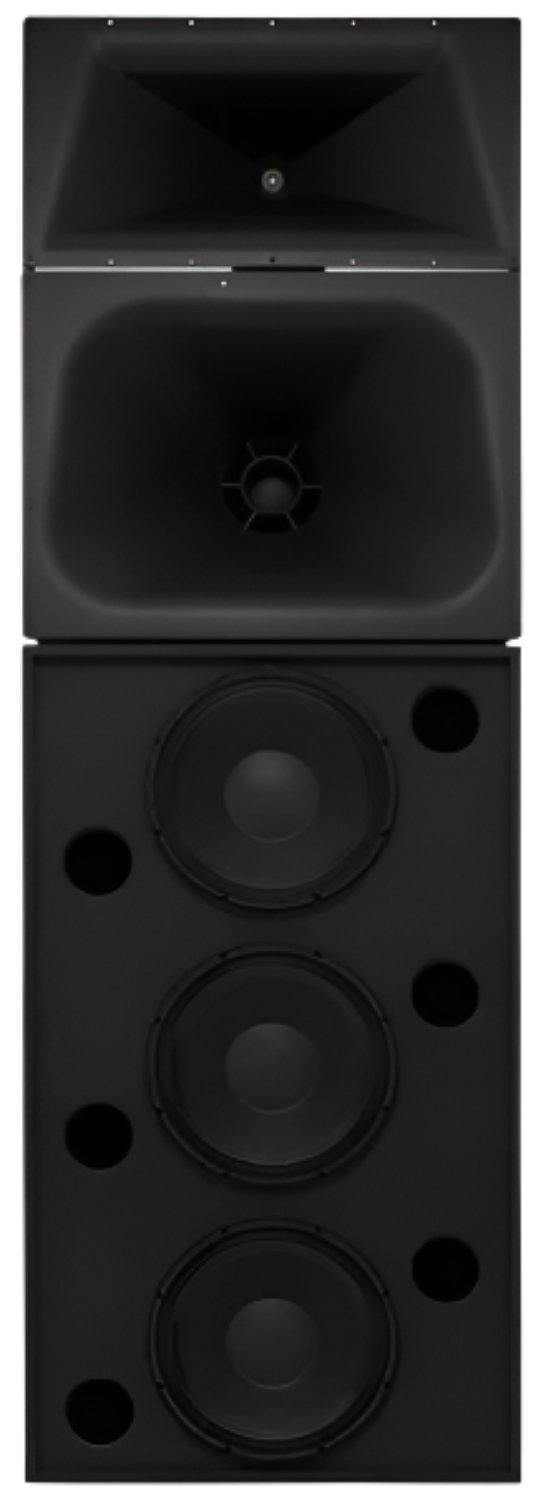

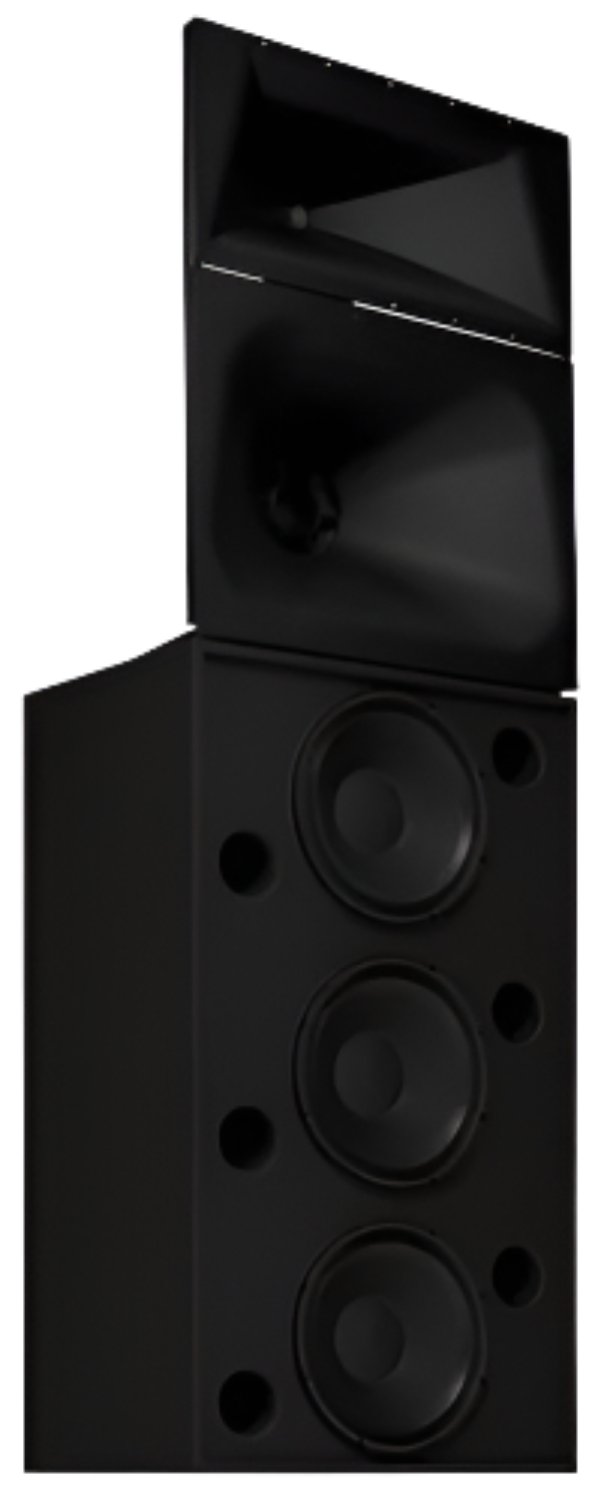

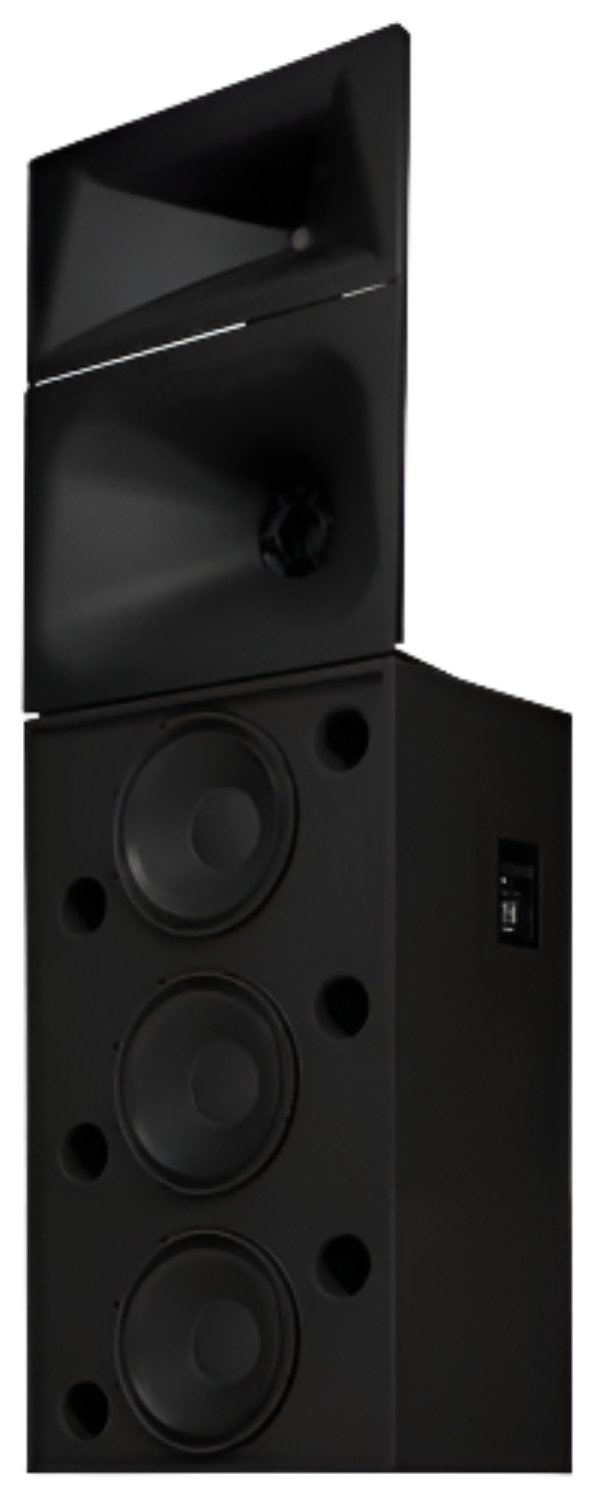

SC-434 is four-way, selectable tri or quad-amplified screen channel loudspeaker system comprised of two main units the MHV-1090 high-frequency system and the LF-4315 low-frequency system. The MHV-1090 mid-high-very high system features a high output, horn loaded 10-inch midrange cone driver and a coaxial neodymium high-frequency/very high-frequency compression driver. The LF-4315 triple 15-inch (381mm) low-frequency enclosure is designed specifically to address the extended low-frequency response required for cinema applications.

Features:

• Four-way selectable, tri or quad- amplified screen channel system
• Unique HF/VHF diaphragm has less mass than traditional diaphragms resulting in exceptional dynamic range, extended high frequency response and lower distortion
• LF-4315 is constructed of MDF and is heavily braced
• Low-distortion waveguides provide highly articulate dialogue
• Shallow depth (20-inch) facilitates installation

Specifications:

• SC-434:
  • Nominal Coverage: 90° horizontal by +20 to -30° vertical
  • Frequency Range (-6 dB): 33 Hz€“20 kHz
  • Active Crossover Frequencies: 250, 1700, and 6000 Hz, 24 dB per octave
• LF-4315:
  • Impedance: 5.5 ohms
  • Sensitivity 1 watt/1 meter, half space: 101 dB
  • 8 hours of 6 dB crest factor IEC 268 noise spectrum: 1200 watts RMS
  • 2 hours of 6 dB crest factor pink noise, 50 Hz - 20 kHz, AES method: 1500 watts continuous
  • Recommended Amplifier Power: 2400 watts continuous maximum
  • Recommended Processing: Subsonic filter below 30 Hz, >18 dB per octave
  • Connectors: Barrier strip screw terminals accept up to #10 AWG stranded wire
  • Transducers: Three 15-inch (381 mm) high efficiency, extended bass woofer featuring a 4-inch copper voice coils
  • Enclosure: Quasi B4 alignment, ported enclosure with fully flared ports, symmetrical port design, tuned to 36 Hz, constructed of MDF and heavily braced. Features vandal resistant woofer mounting bolts
  • Dimensions (HWD) inches: 53 × 30 × 20.3
  • Dimensions (HWD) mm: 762 x 1344 x 516
  • Net Weight: 260 lb (118 kg)
  • System Weight: 344 lb (155.5 kg)
  • Baffle Cut-Out: 93-inch × 32-inch
• MHV-1090:
  • Impedance:
    • MF: 8 ohms
    • HF: 8 ohms
    • VHF: 8 ohms
  • Sensitivity 1 watt/1 meter, half space:
    • Tri-amp:
      • MF: 105 dB
      • HF/VHF: 110 dB
    • Quad-amp:
      • MF: 105 dB
      • HF: 110 dB
      • VHF: 110 dB
  • 2 hours of 6 dB crest factor pink noise, 50 Hz - 20 kHz, AES method:
    • Tri-amp:
      • MF: 275 W continuous
      • HF/VHF: 200 W continuous
    • Quad-amp:
      • MF: 275 W continuous
      • HF: 100 W continuous
      • VHF: 100 W continuous
  • Recommended Amplifier Power:
    • MF: 800 W continuous
    • HF: 500 W continuous
    • VHF: 300 W continuous maximum
  • Recommended Processing: 4th order LR crossover at 280, 1700, and 6000 Hz via QSC processing
  • Connectors: Barrier strip screw terminals accept up to #10 AWG stranded wire
  • Transducers:
    • MF: 10-inch high-efficiency, horn-loaded cone with phase plug
    • HF/VHF: coaxial neodymium compression driver with 3.5-inch (90 mm) HF diaphragm and 1.75-inch (44 mm) VHF diaphragm
  • Enclosure:
    • Tilt/Pan Bracket
    • ± 10° vertical tilt
    • ± 10° horizontal pan
  • Dimensions (HWD):
    • Inches: 39 × 30 × 20
    • Millimeters: 762 x 990 x 508
  • Net Weight: 84 lb (38.5 kg)
