RCF

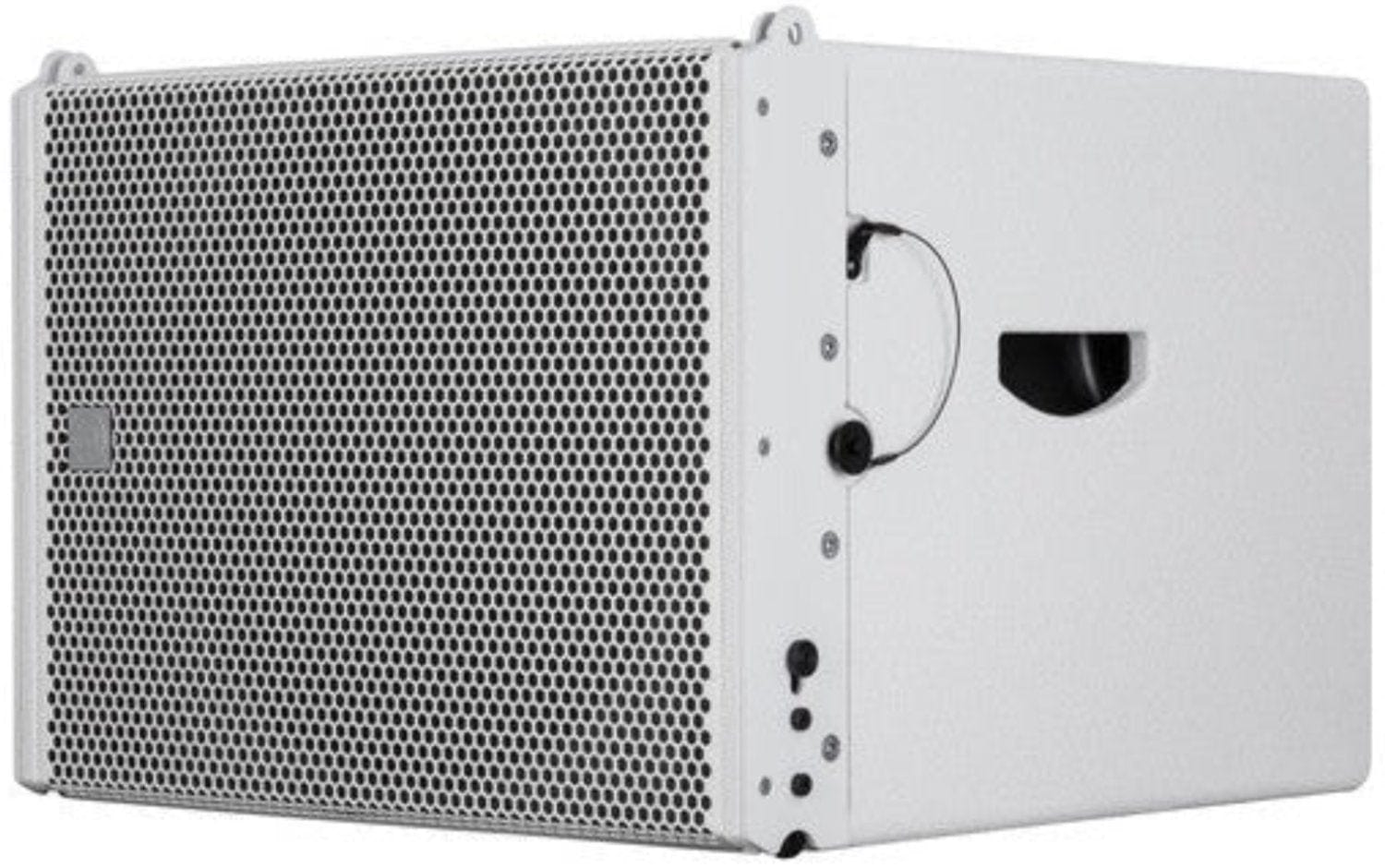

RCF HDL-36-AS W Active 15 Inch Flyable Subwoofer - White (Use FL-B HDL 28 Flybar)

RCF HDL-36-AS W Active 15 Inch Flyable Subwoofer - White (Use FL-B HDL 28 Flybar)

RCF HDL-36-AS W Active 15 Inch Flyable Subwoofer - White (Use FL-B HDL 28 Flybar)

The HDL 36-AS in white is the ideal flyable bass complement for the HDL 28-A array system. It features one 4.0€� voice coil, 15€� neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with the maximum linearity and low distortion. The built-in 3200 watts class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 36-AS is part of the professional HDL System.

Features:

  • 135 dB Max SPL
  • 3200W Class-D Amplifier
  • 40-140 Hz frequency response
  • RDNet Networked Management
  • 15€� Neodymium Woofer, 4.0€� voice coil

Specifications:

  • Acoustical Specifications:
    • Frequency Response: 40 Hz - 140 Hz
    • Max SPL @ 1m: 135 dB
  • Transducers:
    • Woofer: 15€� neo, 4.0€� v.c
  • Input/Output Section:
    • Input Signal: bal/unbal
    • Input Connectors: XLR, RDNet Ethercon
    • Output Connectors: XLR, RDNet Ethercon
    • Input Sensitivity: +4 dBu
  • Processor Section:
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Volume, Preset Selection, RDnet On Board
    • RDNet: Yes
  • Power Section:
    • Total Power: 3200 W Peak, 1600 W RMS
    • Low Frequencies: 3200 W Peak, 1600 W RMS
    • Cooling: Convection
    • Connections: Powercon IN/OUT
  • Standard Compliance:
    • CE Marking: Yes
  • Physical Specifications:
    • Cabinet/Case Material: Baltic birch plywood
    • Hardware: Array fittings
    • Handles: 2 Side
    • Pole Mount/Cap: Yes
    • Grille: Steel
    • Color: White
  • Size:
    • Height: 467 mm / 18.39 inches
    • Width: 555 mm / 21.85 inches
    • Depth: 593 mm / 23.35 inches
    • Weight: 37 kg / 81.57 lbs
  • Shipping Information:
    • Package Height: 500 mm / 19.69 inches
    • Package Width: 570 mm / 22.44 inches
    • Package Depth: 610 mm / 24.02 inches
View full details
