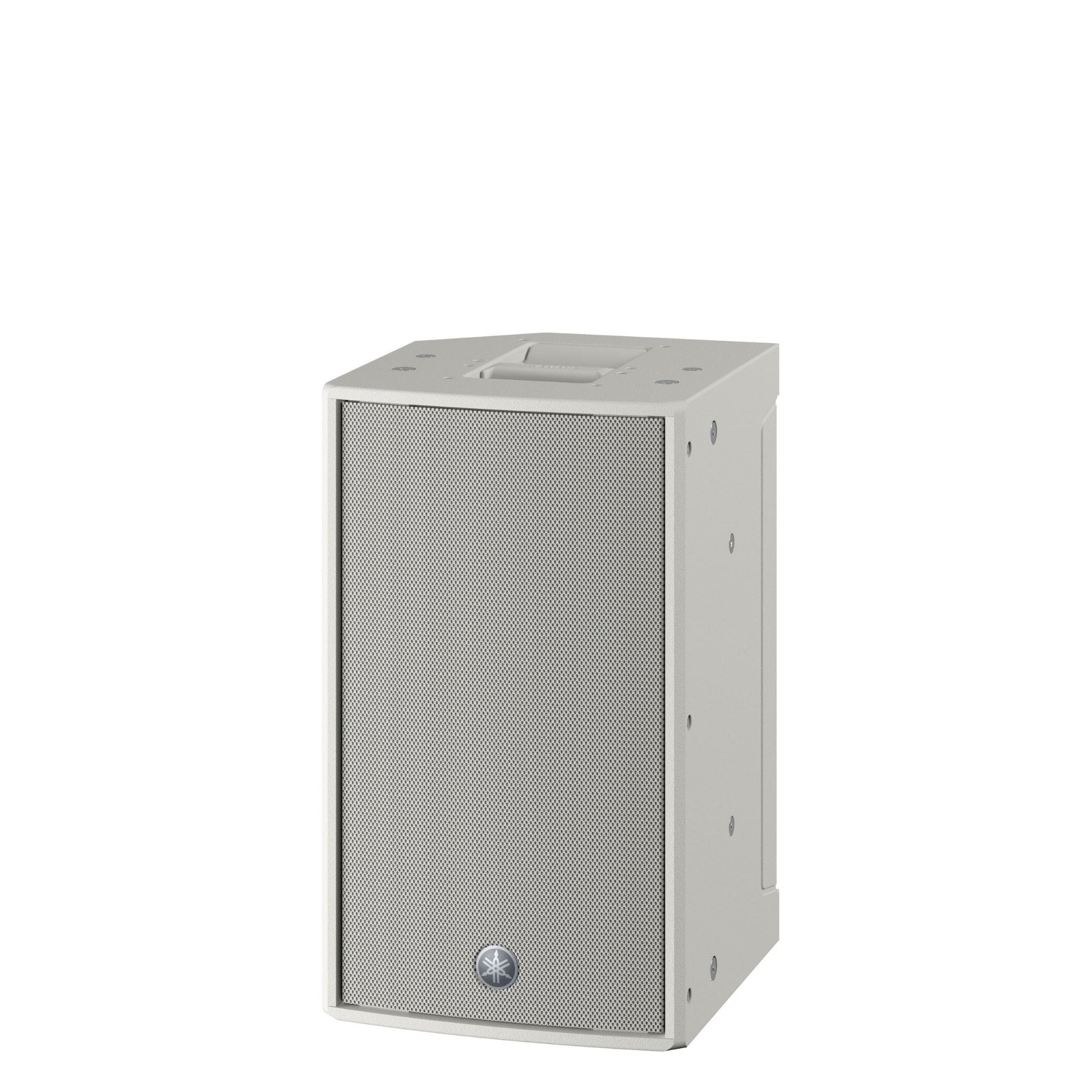

Yamaha CZR10 700-Watt 10-Inch Passive Loudspeaker White

Yamaha CZR10 700-Watt 10-Inch Passive Loudspeaker White

The CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10 ideal for range of live performance and installed sound environments€”from live bands at outdoor festivals to DJ€™s in clubs€”these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

Features:

• 2-way loudspeaker with a 2€� HF and a 10" LF
• Features Yamaha's own Wide Dispersion CD Waveguide Horn
• High power 700W(PGM) power handling and Bi-amp capable
• Floor monitoring setting
• Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
• Dual-angle pole socket
• Optional speaker cover (SPCVR-DZR10)
• Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement

Specifications:

• Speaker Type: 2-way Speaker, Bass-reflex
• Frequency Range (-10dB): Passive: 43 Hz - 20 kHz
• Coverage Area: H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn
• Floor Monitor Angle: 50°
• Components LF: 10" Cone, 3" Voice Coil, Neodymium magnet
• Components HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 2.5 kHz

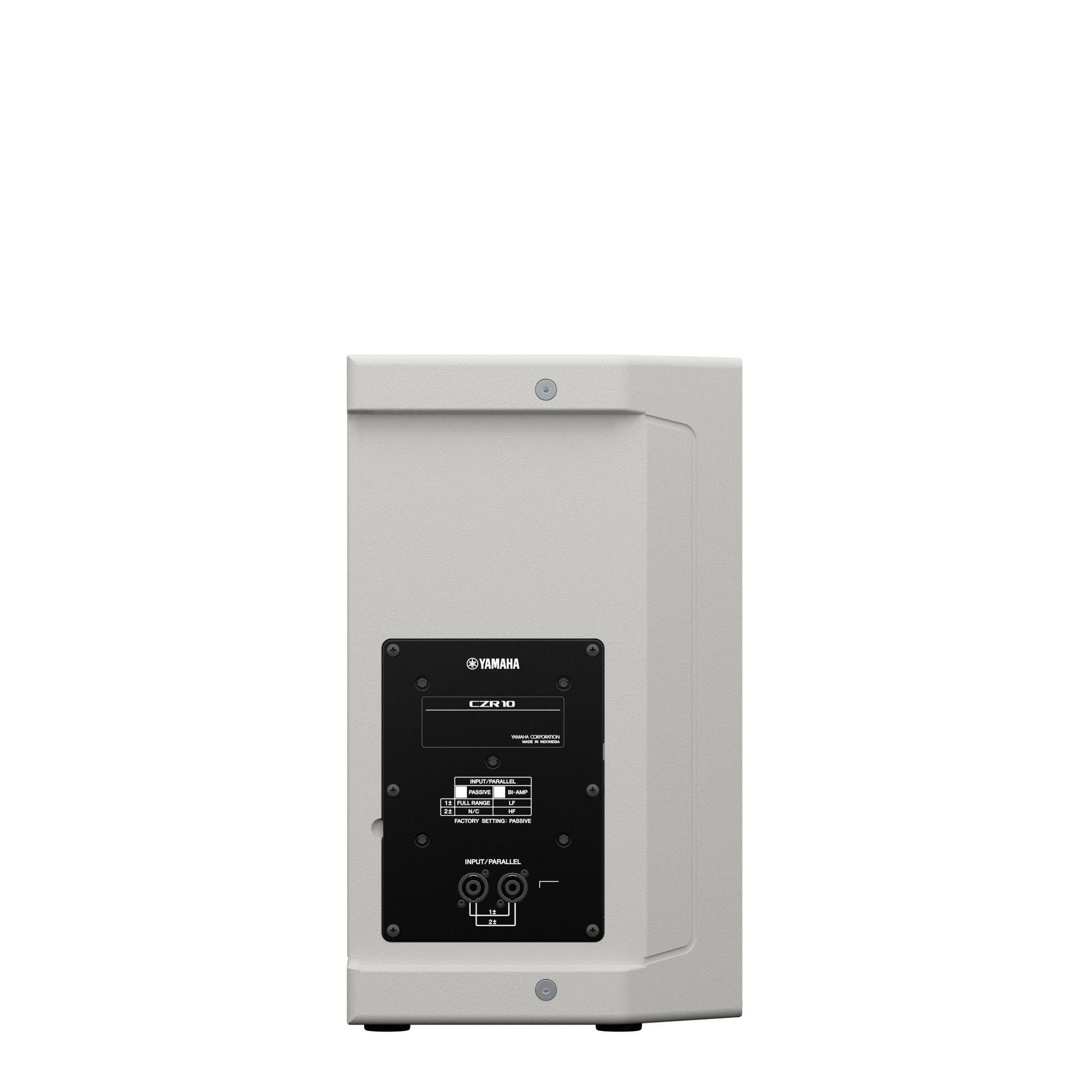

• I/O Connectors: SpeakON NL4MP x 2 (Parallel)
• Handle: Aluminium die-cast, Top x1, Side x1
• Pole Socket: Φ35 mm x2 (0° or -7°)
• Rigging: M10 x 8, M8 x 2
• Dimensions (WxHxD): 12.4" x 21.1" x 13.6"
• Weight: 14.0 kg (30.9 lbs)

Nominal Impedance

• Passive: 8Ω, Bi-amp - LF: 8Ω, HF: 16Ω

Power Rating

• NOISE: Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W
• PGM: Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W
• PEAK: Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W

SPL

• Sensitivity (1W; 1m on axis): Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL
• Peak (Calculated): Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL
